Enrok Construction

New Medical Centre

Location: Nuneaton

Contract Duration: 2 weeks

Swipe

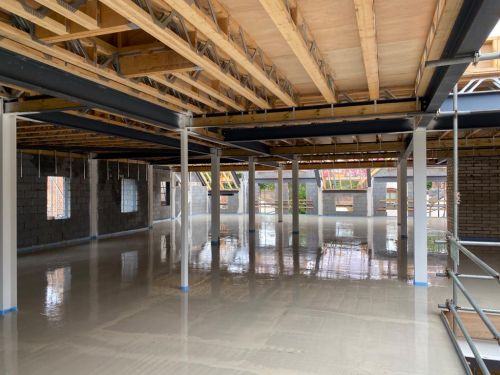

Our final update on Hartshill Medical Centre in Nuneaton for Enrok construction, we have now completed the installation of insulation, underfloor heating and liquid flow screed to both the ground floor and 1st floor.

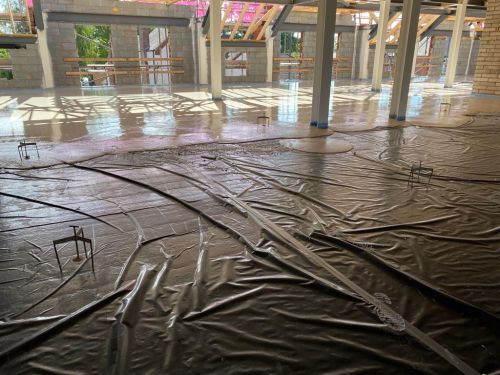

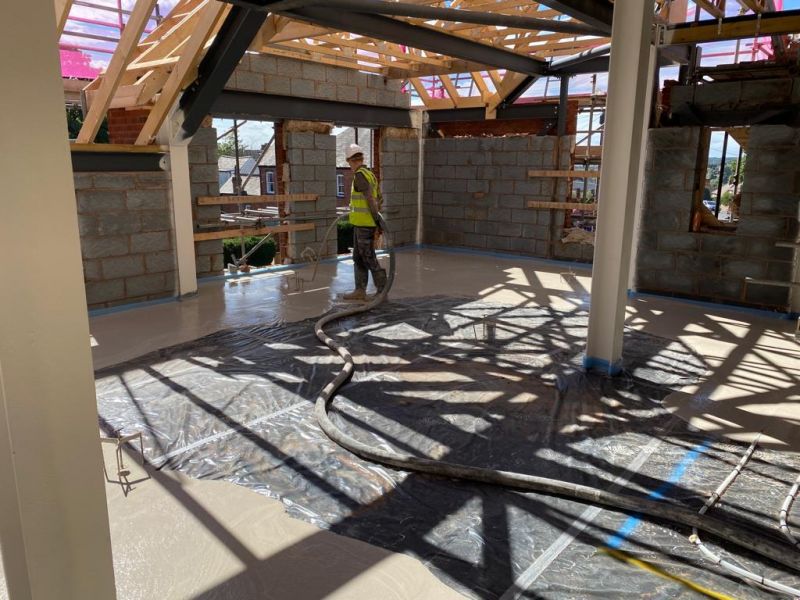

The ground floor consisted of 36m3 of Tarmac’s liquid flow screed (screed A) laid on 500gg polythene separating membrane on 120mm Celotex & 25mm EPS70 polystyrene along with a 25mm Celotex upstand to all exterior walls and a 5mm foam expansion strip to all walls.

On the first floor 32m3 of Tarmac’s liquid flow screed (screed A) laid on 500gg polythene separating membrane on 50mm Celotex & 15mm EPS70 polystyrene with a 5mm foam expansion strip to all walls.

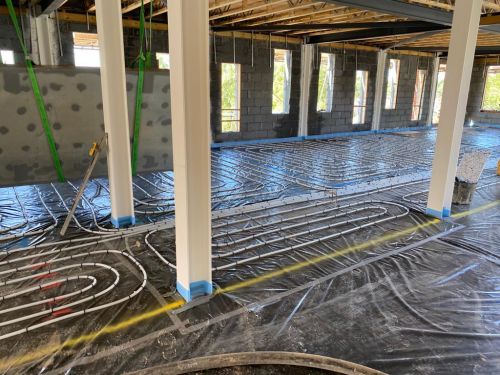

Part of package included the installation of the underfloor heating which consisted of 6 manifolds (2 on the 1st floor and 4 on the ground floor). 16mm pipes, tracker clips, 42 thermostats and 52 thermal actuators.

The new medical centre will be a huge asset to the local community once it’s completed, we are pleased to have played our part in the construction of it. Looking forward to seeing the finished building.
